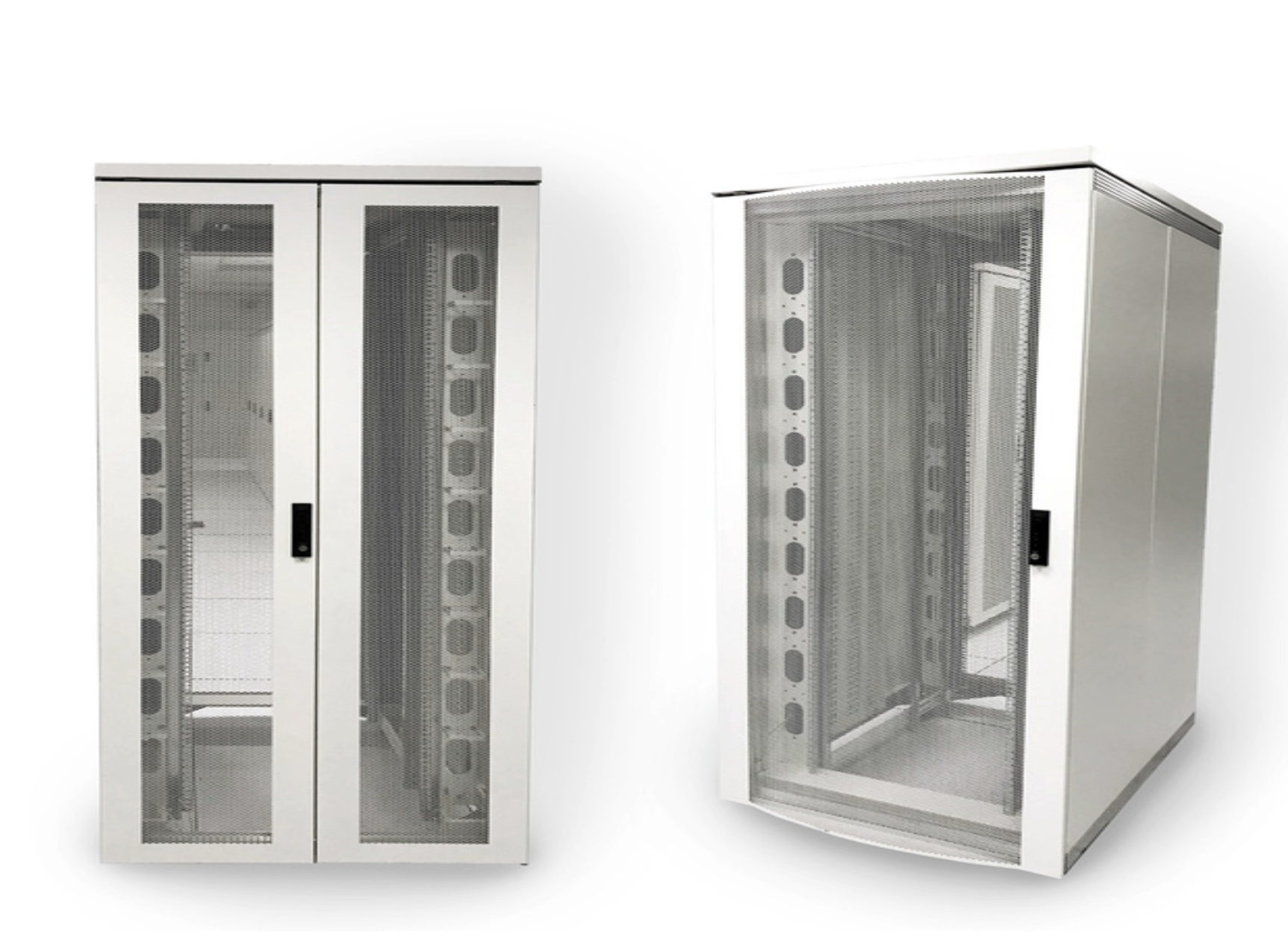

Prismdcs – FI-CAB46612-OPW-SR FI 46U 600MM X 1200MM Server Cabinet

• 1 X BOLTED ALUMINIUM FRAME CONSTRUCTION
• 1 X BESPOKE OPW SPEC ROOF
• 2 × 450MM X 80MM BRUSH STRIP CUT OUTS – 1 CENTRALLY EITHER SIDE & 1 X STANDARD 300 X 80MM CUT OUT TO REAR OF ROOF
• 2 X 100MM X 100MM CUT OUT IN EACH REAR CORNER OF ROOF FOR PDU’S
• 100MM X 100MM CUT OUTS TO HAVE 2 PART GLAND PLATE TO CLAMP AROUND 1X 32AMP CABLE – 17MM DIAMETER CENTRAL TO 2 PART PLATE
• 1 X CURVED MESH (83% AIRFLOW) DOOR, 3 POINT LOCKING SYSTEM AND COMBI LOCK
• 1 X WARDROBE MESH (83% AIR FLOW) DOOR, 3 POINT LOCKING SYSTEM AND COMBI LOCK
• 1 X PAIR OF BESPOKE 703/0 SPLIT SLIDING PANELS – OFFSET SO RETURN FOLDS DO NOT CLASH WITH REAR OF CENTRAL CABLE TRAY
• 4 X UNIVERSAL STYLE ADJUSTABLE MOUNTING PROFILES
• U HEIGHT NUMBER LABELS ON ALL PROFILES
• FRONT PROFILES SET 60MM BACK FROM FRONT OF ALUMINIUM
• REAR PROFILES SET 736MM FROM FRONT PROFILES
• NO MID PROFILES
• 2 X HORIZONTAL AIR BAFFLE PLATES FITTED AT TOP AND BOTTOM OF PROFILES
• 1 X FINGER STYLE 46U 100MM CABLE TRAY (1 FITTED CENTRALLY RIGHT-HAND SIDE) MUST HAVE V FOLD FOR RIGIDITY
• 2 X FINGER STYLE 46U 100MM CABLE TRAY (1 FITTED EITHER SIDE AT REAR OF CABINET) MUST HAVE V FOLD FOR RIGIDITY
• 2 X PAIR OF SINGLE DEAD SPACE PDU BRACKETS TO BE 20MM DEEPER THAN STANDARD DEAD SPACE BRACKETS
• 3 X 1U JUMPER RING (IDF DESIGN) FITTED TO INSIDE OF TOP REAR ALI HORIZONTAL
• 1 X 46U EARTH BAR
• 1 X BAYING KIT
• 1 X EARTH BONDING KIT
• 1 X SET OF HEAVY DUTY CASTORS
• 1 X BESPOKE SET OF ADJUSTABLE CABINET FEET FEET TO HAVE 20MM THREAD
• CABINET AND ACCESSORIES TO BE SPRAYED RAL 9003

Features

Bolted aluminum frame; bespoke OPW roof and specific cut outs for PDU gland plates; 83% airflow curved mesh front door and wardrobe mesh rear door; bespoke 703/0 split sliding panels offset to avoid cable tray clashes; universal adjustable mounting profiles with U height labels; finger-style 46U 100 mm cable trays with V fold rigidity; deeper dead-space PDU brackets; 3 × 1U jumper rings; 46U earth bar; baying and earth bonding kits; heavy duty castors and adjustable feet; sprayed RAL 9003 finish.

Benefits

Supports high-density equipment with 46U capacity and full cable management provisions; PDU gland plates and deep PDU brackets simplify power ingress and PDU mounting; high airflow mesh doors improve cooling efficiency; adjustable profiles and labeled U heights speed installation and alignment; V-fold cable trays provide rigid, reliable cable routing; earth bar and bonding ensure proper grounding and safety; mobility and leveling options ease deployment and alignment in datacenter rows.
